ESC 4en1 25A SpediX

Référence : ARM-SPEDIX-4in1-25A

ESC 4en1 25A SpediX

Référence : ARM-SPEDIX-4in1-25A

Continuous Current: 25 amps
Burst Current: 35 amps≥10 S
Input Voltage: 2-5 Cell LiPo
BEC: No
Current Detection: Yes
Dimensions: 29x32x5mm
Mounting pattern: 20x20mm
Mounting Holes: 3.7mm (M3 shoulder washers included)
Firmware: BLHeli_S(QH-15)
Input signal: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300 & Dshot600

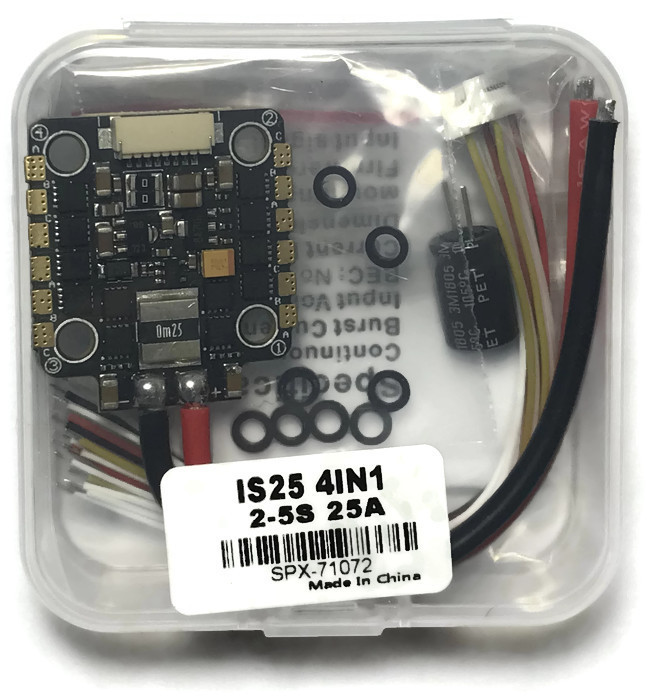

Included:

1x 25amp 4in1 ESC
10cm red & black 16AWG wire pre-soldered
10x M3 shoulder washers (8 required, 2 spare)
25v 330μF capacitor
2x 1mm JST-SH 8-pin connectors
1x Datasheet



Notice:

1. If 5S is used, it's recommended to solder the included capacitor.
2. The amperage meter scale needs to be set to 200 for the current sensor to work.



Important Note:
Electronics are not warrantied beyond being dead on arrival.
If for whatever reason you have no time to check the electronics within 14 days of receiving them, then no warranty or replacement will be granted.
So please only order this if you have time to check for proper functioning within 14 days of arrival.
Claims for defective parts emailed to us after this 14 days period is up will be denied.
