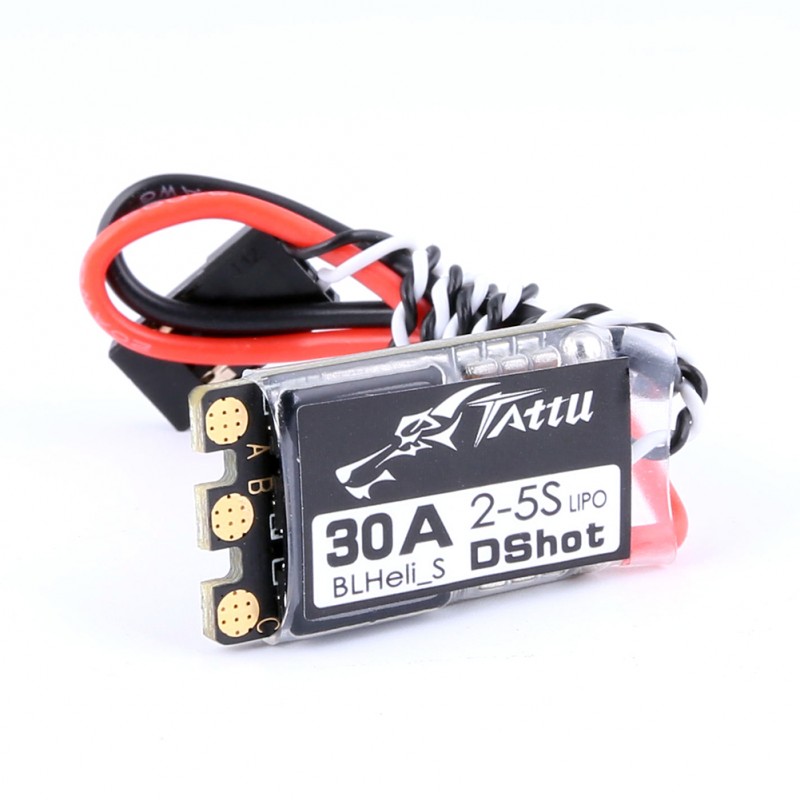

ESC TATTU 30A BLHeli_S ESC (2-5S, w/Dshot, No BEC) for FPV RC model (1pcs)

Specifications :

Firmware: BLHeli_S V16.6 A-H-20
Max continuous load: 30 amps
Burst Current: 40A / 10sec
Lipo Cells: 2 to 5 cells
MCU: SILABS EFM8BB2 48MHz
BEC: No
Weight: 3.6g (only board) 6.5g (total with wires and heat sink)

Dimensions :

PCB size: 26mm L*14.5mm W
ESC height: 6mm
Signal wire: 150mm
Power wires: 100mm
